Tool families/Spine-Hinge Creaser
Perfect-bound covers that won't crack or flake — up to four deep creases in a single pass.
The Spine & Hinge Creaser applies up to four deep, matrix-style creases — two hinge and two spine — so perfect-bound book covers fold cleanly and won't crack or flake along the spine or hinge. Ideal for book covers, folders, capacity wallets, or any product that needs multiple close-proximity creases.
Spine and hinge creasing of book covers — plus folders, capacity wallets and any product that needs multiple close-proximity creases.
The problem
The problem we solve
In the world of perfect binding, a book is often judged by its cover. However beautiful the glossy design, if the spine and hinges show any sign of cracking or flaking, that is exactly where your customer's eye is drawn. On covers printed with darker inks and finished with laminate, toner, UV coating or varnish, those protective layers fracture the moment a rigid scoring tool touches the surface — a defect we call white-line flaking. It shows along the front and back hinges of the jacket and becomes more obvious every time the book is opened.
The factory method
The Spine-Hinge Creaser wayWhy the OEM way fails
Why the standard factory method falls short

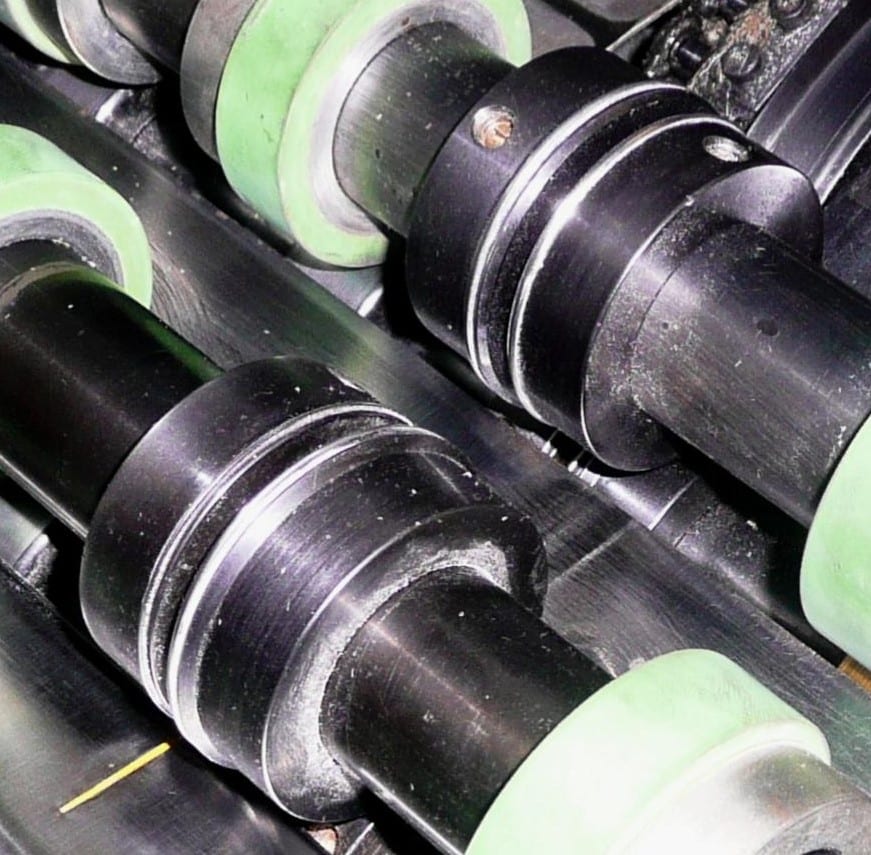

Steel scoring tools compound white-line flaking for two reasons. First, they are made of steel — a destructive material that breaks cover-stock fibres and any coating on top, rather than gently softening them. Second, they create small V-shaped indentations too weak and too narrow for the spine and hinge to fold cleanly. The Spine & Hinge Creaser replaces that score with deep, rubber-formed matrix creases.

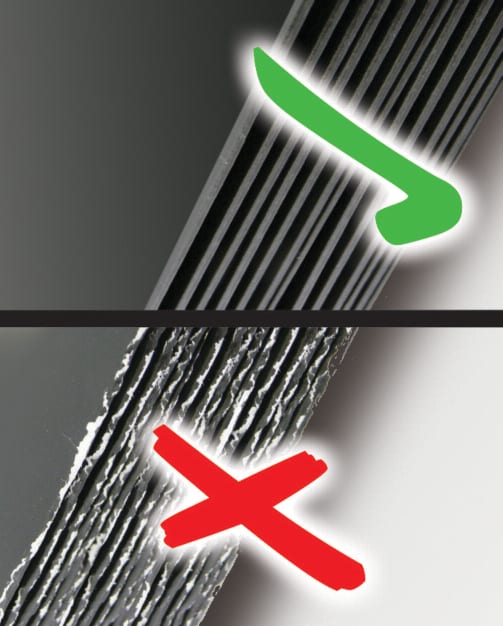

Where OEM steel scoring leaves a white flaking line and a weak V too shallow to fold, the Spine & Hinge Creaser's rubber ribs gently manipulate and stretch the fibres, forming a clean, deep crease that simply won't allow flaking — no matter how often the pages are opened and closed.
How it works
How the Spine-Hinge Creaser works

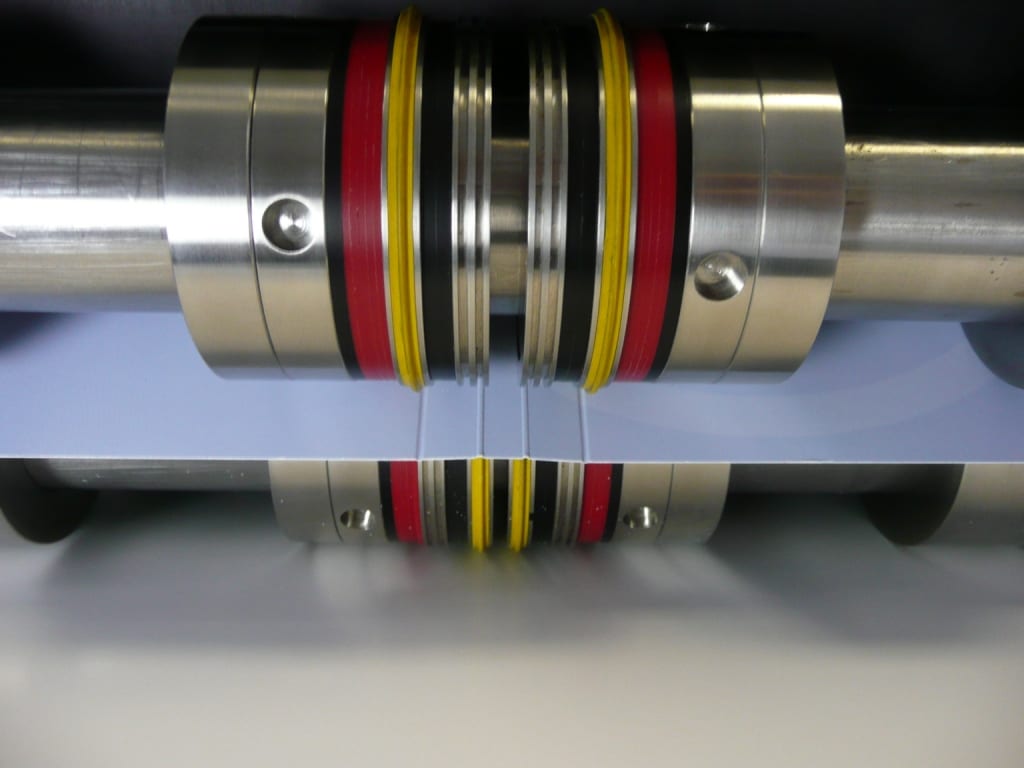

The Spine & Hinge Creaser uses specially formulated rubber creasing ribs that gently manipulate and stretch the fibres in the cover material, so surface flaking is avoided. It applies two upper (hinge) and two lower (spine) deep, matrix-style creases that form perfectly around the spine and hinge areas — creating the shape the cover needs to fold cleanly.
The durable, patented colour-coded rubber creasing ribs are split, so you can install them straight into the male and female hubs without taking out the shafts. Changeover takes minutes rather than the hours a rigid scoring tool needs, and less downtime means less lost production.
Depending on the version you buy, you have up to four crease settings to choose from for light, medium and heavy stock weights up to 400 gsm. Colour-coded rubber creasing ribs match different grades of stock, and each rib produces up to 800,000 impressions before it needs replacing.
The result is a deeper, more flexible hinge that folds effortlessly and bonds reliably — books that hold together better than before and look great. The crease depth and width settings give complete fold flexibility and instantly eliminate the problems that threaten the look and function of high-value bound books across their whole shelf life.
What you get
Every Spine-Hinge Creaser delivers
- Eliminates white-line flaking and fibre cracking so your books look great
- Up to four deep creases in one pass — 1 to 4 lines, same or opposite sides
- Stronger hinge creases keep side-glue bonded to the 6mm flaps
- No more outsourcing of covers for off-line creasing
- Pays for itself on average within the first four months
- No ripped or split sheets during setting
- Excellent on UV-coated, laminated and digital stocks, even cross-grain
- Far faster to set than the OEM version, thanks to split creasing ribs
Eliminate white-line flaking and fibre cracking — 100% — so high-value covers stay flawless across the life of the book.
Superior creases let side glue bond with the hinge flaps — the front and back covers open on the hinge without breaking glue contact, so the book stays together and feels user-friendly.
No more outsourcing of book covers for creasing — keep the work, the quality and the margin in house instead of sending covers through a letterpress cylinder elsewhere.
Crease 1 to 4 lines simultaneously — on the same side or opposite sides of the sheet — to deliver spine-and-hinge jobs, capacity wallets and multi-crease folders in a single pass.
No more sheet ripping or splitting covers in half during setting — the rubber ribs set cleanly first time, avoiding wasted stock.
Works perfectly on cross-grain materials regardless of solid ink coverage — the toughest covers crease cleanly.
Not limited by speed — it works as fast as the machine can run, so creasing never becomes the bottleneck.
Significantly faster to set than steel scoring — the split creasing ribs change in minutes, so switching between crease settings barely touches your production time.
Works first time, every time — set it once and it avoids the unnecessary crease-depth adjustment that eats into production.
The payback
It pays for itself in 1–3 runs
On average the Spine & Hinge Creaser pays for itself within the first four months — most customers recoup the cost by avoiding the outsourcing of covers, then keep the full margin for the many years the device lasts. The only ongoing cost is periodically replacing the colour-coded rubber ribs (up to 800,000 impressions each), and the faster changeover cuts the downtime that quietly drains production and revenue.
Proven worldwide
What printers say
“We received the Spine-Creaser attachment this morning and it went right in without any problems. The before and after on the cover spines is so dramatic that everyone from our sales department is floored!”
“Just a line to say we have done two jobs using the CP Applicator. Delighted! Saved 15 hours work on the Heidelberg cylinder between them, and it frees up a man.”
“We have just completed our second job with the Micro-Perforator and have already recovered the cost we paid for it. Now we can complete work quicker, with superior results than previously, and with a lot more control.”
“We had a difficult job and the outside looked great but the inside was flaking. I ordered a new Tri-Creaser Advance, was so impressed, I ordered two more the next day. They really work great. We delivered that job on time and it saved us from getting a letterpress score and missing a deadline.”
“When a new creasing tool was needed for the cover feeder of our Muller Martini binding machine, we turned to Tech-ni-Fold. We were utterly amazed when we tried the adjustable version of the Quad Creaser — it had colour-coded ribs that corresponded to different crease styles, and it further improved the quality of covers using our own special side-gluing "spineless" method. Not only does the system eliminate fibre-cracking, it also minimises the reset force of the cover. The Quad Creaser has allowed Kosel to raise its own quality standards for bound products.”
“We installed your Quad-Creaser system into 3 of our binding lines after seeing it at a book show. The OEM scoring system has a swap time of around 4 hours for a single engineer, whereas your system can have a full change in under 10 minutes once installed. As your creasing rings last around 800,000 covers, that's one change per month — and the change is now an operator task with rings held in stock, rather than ordering OEM parts and waiting for an engineer. We change from 2-score to 4-score several times a day, and your system does it in half the time of the OEM system.”
For digital printers
Built for digital print finishing
Performs excellently on UV-coated, laminated and digital stocks — exactly the finishes most prone to flaking under a steel scoring tool. The gently-formed crease protects toner and coating, so digitally-printed bound covers come off the line clean.
Versions & fitting
Spine-Hinge Creaser versions
The fully adjustable version. Alongside the standard Spine & Hinge Creaser, a fully adjustable, colour-coded upgrade is available for companies that want extra versatility. It offers more crease widths and depths for wider stock ranges and — unlike the standard version — lets you adjust the distance from spine to hinge to suit each job.
Fits your machine
Engineered for the world's machines
We make a Spine-Hinge Creaser to fit machines from 11 manufacturers, including:
Risk-free
Take advantage of our 100% Money-Back Guarantee. If for any reason the Spine & Hinge Creaser does not perform as stated and fails to meet your expectations within the first 12 months of purchase, return it and we will reimburse you in full — no questions asked.
