Some work folds at the centre and tears off at both sides. Remittance forms with a stub each end, coupon sheets that fold once and tear twice, NCR sets that need the perforations sitting tight against the fold so the copies separate cleanly in the customer's hands.
That pattern, a crease with a micro-perforation either side of it, packed into a few millimetres, is beyond any standard tool layout. So the work has gone to a letterpress cylinder, or through the folder twice, with all the cost, queuing and registration risk that brings.
This is the tool built for exactly that pattern:
Choose your tear strength

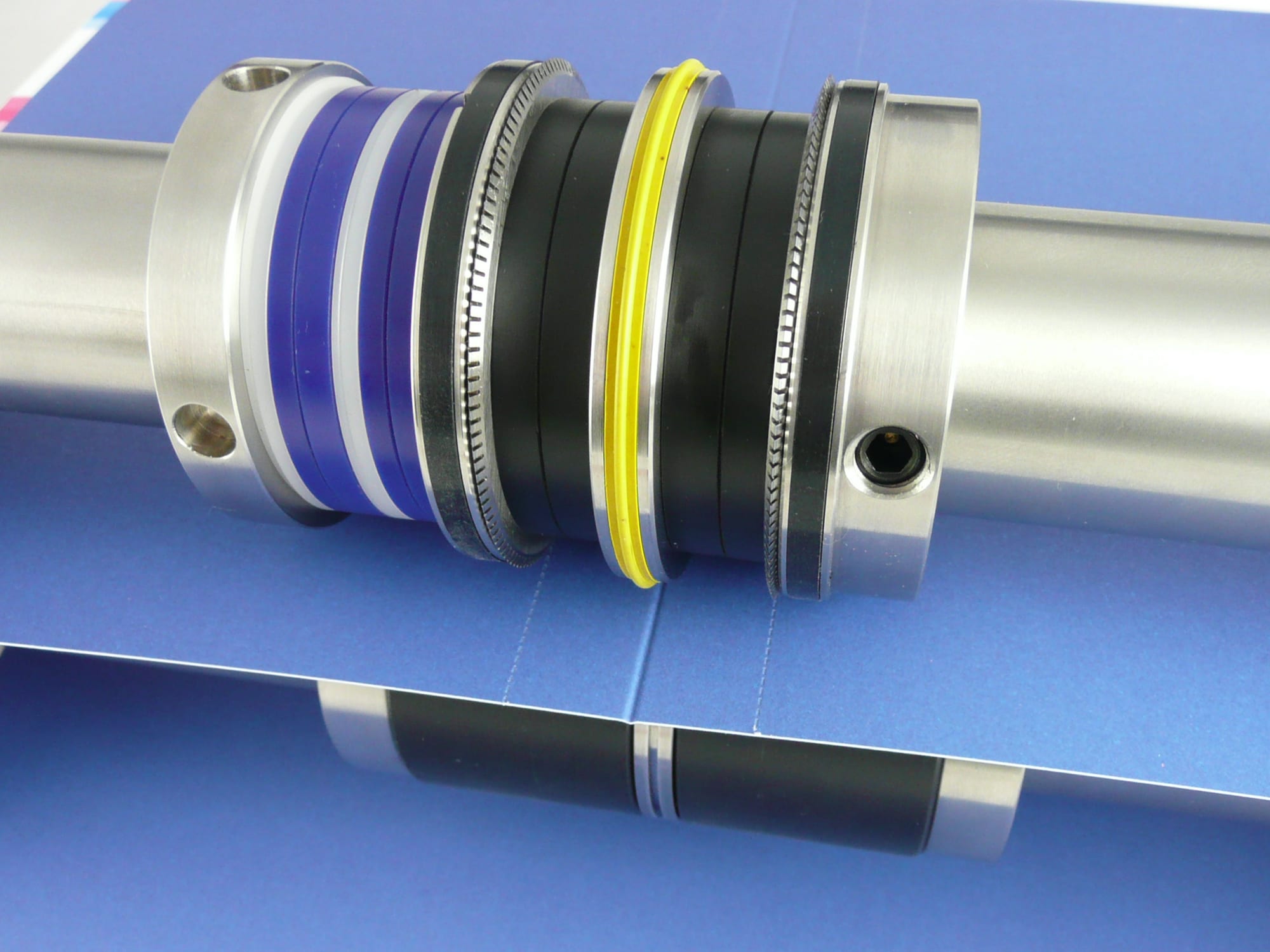

The CP Applicator holds the whole pattern in one housing, on the shafts your folder already has. A fixed perforation blade, a floating creasing band, a second floating blade, with the spacing set on precision spacers, and the perforations sit as close as 5mm to the crease line. A blade, the band, a blade: nothing to line up, ever.
Because all three finishes travel together, they cannot drift apart mid-run. Set it once and the pattern lands identically on sheet one and sheet five hundred thousand, at full folder speed.
No payment details. No commitment.
“We recently ran 625,000 sheets of an NCR set that needed two perforations through our folder using the CP Applicator system. We ran the job in a quarter of the time that it would have taken to do on a Cylinder. We would have definitely struggled without it. It is easy to set up and run and it increases the throughput time of jobs as they don't always have to be letterpress perforated.”
The facts
- Pattern
- One centre crease with a micro-perforation either side
- Proximity
- Perforations as close as 5mm to the crease line
- Blades
- Full micro-perf range, matched to your stock and tear
- Crease
- Three depths on colour-coded females: light, medium, heavy
- Fits
- Your folder's existing shafts, no modification
- Proven
- 45,000+ tools running in 79 countries, since 1999
Built for the folders you already run
And every folding machine with standard slitter shafts. If yours is not listed, ask, the answer is usually yes.
