Tool families/CP Applicator
Crease and micro-perforate in a single pass — tear-off perfs as close as 5mm from the fold.
The CP Applicator is a close-proximity creasing and micro-perforating device. It produces two fine, almost-invisible micro-perforations as close as 5mm from the crease — the perfect solution for signatures, coupons, tickets and order forms that need a tear-off right next to the fold.
Creasing plus close-proximity micro-perforation in one pass — for signatures, coupons, tickets, vouchers and order forms with a tear-off close to the fold.
See it run
Watch the CP Applicator at work
The problem
The problem we solve
Signatures, coupons, tickets and order forms often need a tear-off perforation running right up against the fold — sometimes as little as 5mm away. Producing a clean, almost-invisible perf that close to a crease while still folding accurately is genuinely difficult on a folding machine: most set-ups either can't place the perf near enough, distort the fold, or leave a ragged tear line on coated, laminated or digital stocks.
How it works
How the CP Applicator works

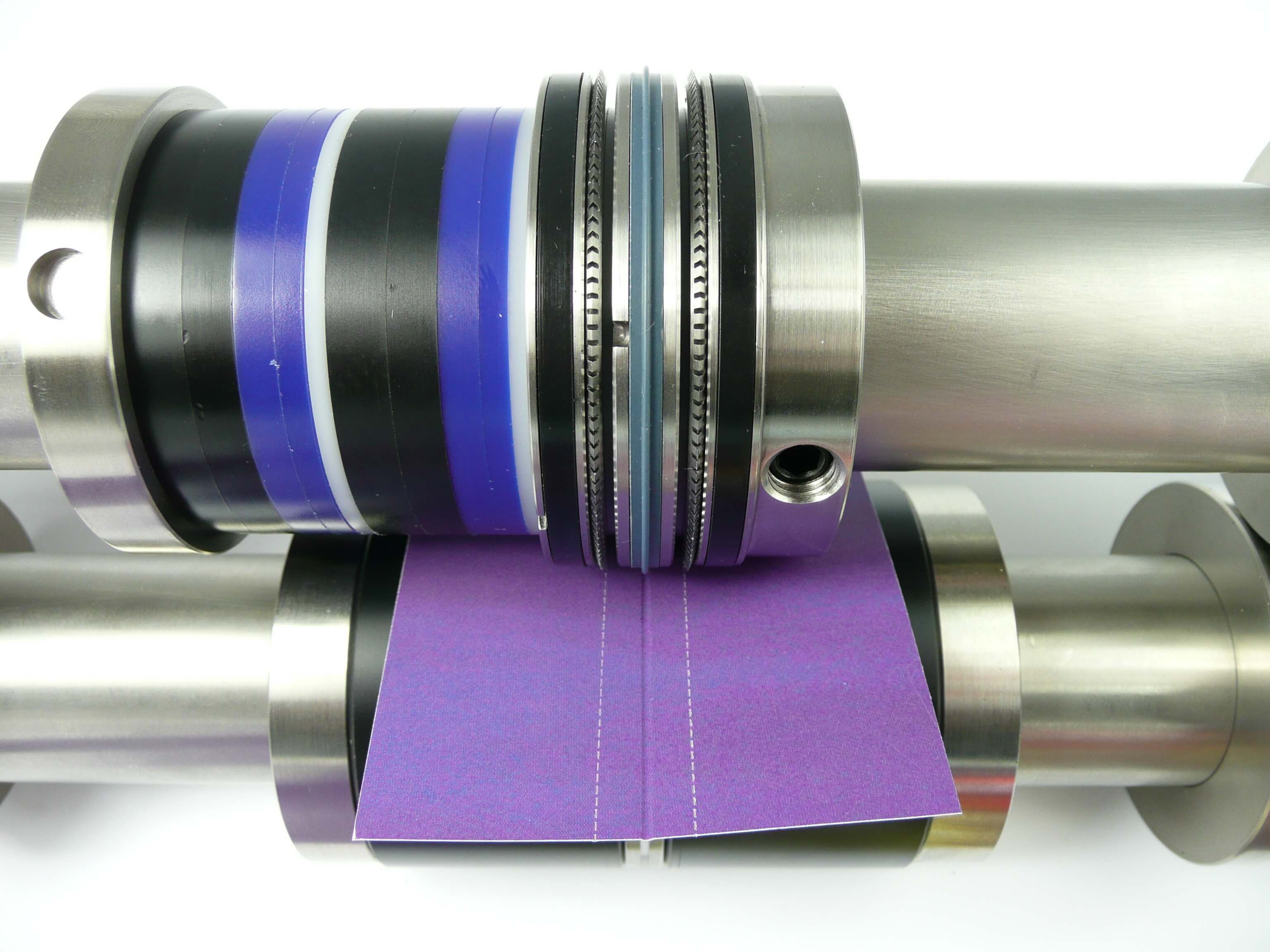

The CP Applicator pairs the crease and the perf on one set-up. It uses Easy-Fit creasing ribs to guarantee accurate folding, with precision-cut 17, 25 and 52 tpi micro-perf blades running on specially designed nylon perfing sleeves that hold precise kiss-cutting tolerances. A special cassette houses the creasing ribs, and an adaptable set of spacer rings dictates the exact distance from each blade to the crease — so you can run 1 crease + 2 perfs, a single crease and perf, or any combination you need.
An in-built colour-coding system simplifies setting, with colour-coded creasing ribs to match different grades of stock, and the adaptable spacer rings let you place the micro-perforations anywhere from 5mm to 50mm from the crease. The device also offers three crease options, adjustable nylon perfing sleeves, and a recessed, reversible design for flexible set-ups.
What you get
Every CP Applicator delivers
- Micro-perforate as close as 5mm — and up to 50mm — from the crease
- Crease quality guarantees accurate folding every time
- Easy to assemble, helping you deliver the job on time
- Not limited by speed — runs as fast as the machine can
- Works on cross-grain materials regardless of solid ink coverage
- Excellent on UV-coated, laminated and digital stocks
Place the perf exactly where you need it — micro-perforate as close as 5mm to the crease and up to 50mm away, for clean tear-offs right next to the fold.
Crease quality that guarantees accurate folding — the Easy-Fit creasing ribs fold the sheet cleanly so the finished piece lines up every time.
Not limited by speed — it works as fast as your machine can run, so combining crease and perf never slows the job down.
Works perfectly on cross-grain materials regardless of solid ink coverage — even demanding stocks crease and perf cleanly.
Proven worldwide
What printers say
“Just a line to say we have done two jobs using the CP Applicator. Delighted! Saved 15 hours work on the Heidelberg cylinder between them, and it frees up a man.”
“We had a difficult job and the outside looked great but the inside was flaking. I ordered a new Tri-Creaser Advance, was so impressed, I ordered two more the next day. They really work great. We delivered that job on time and it saved us from getting a letterpress score and missing a deadline.”
“We recently ran 625,000 sheets of an NCR set that needed two perforations through our folder using the CP Applicator system. We ran the job in a quarter of the time that it would have taken to do on a Cylinder. We would have definitely struggled without it. It is easy to set up and run and it increases the throughput time of jobs as they don't always have to be letterpress perforated.”
For digital printers
Built for digital print finishing
Excellent on UV-coated, laminated and digital stocks — exactly the materials used for the tickets, vouchers and coupons the CP Applicator is built for.
Fits your machine
Engineered for the world's machines
We make a CP Applicator to fit machines from 8 manufacturers, including:
Risk-free
The Tech-ni-Fold five-tier risk-free guarantee — no one in the industry offers anything as powerful: 1. If our products are not as easy to use as we say, and don't save you hours of time, send them back for a full refund. 2. If our creasing products do not eliminate fibre cracking on materials from 85–350gsm, send them back for a full refund. 3. If after three whole months you are not satisfied for any reason — or no reason at all — send them back for a full refund. 4. If after 12 months the product hasn't saved you more than five times its cost, return it for a full refund (just photograph it on your machine first to show you tried it). 5. Every product carries a full 3-year workmanship guarantee — if a device malfunctions in any way in the first three years, we replace it immediately at no cost.
