Tool families/Quad-Creaser
Letterpress-quality spine and hinge creasing that ends cracking and flaking on your perfect-bound covers.
The Quad Creaser replaces the OEM steel scoring modules in your binding line's cover feeder, applying letterpress-quality creases to the spine and hinge — up to four at once — so your perfect-bound covers look flawless and open without flaking. Over 25 versions fit the leading binding machines.
Spine and hinge creasing of perfect-bound book covers — one to four creases, on one or both sides of the cover, to suit the fold direction.
See it run
Watch the Quad-Creaser at work
The problem
The problem we solve
Perfect-bound books are judged by their cover. The OEM steel scoring modules supplied with your binding line are abrasive and create shallow indentations in the two spine and two hinge areas — which, on covers printed with darker inks and finished in laminate, toner or UV coating, fracture into the flaking you see along the front and back hinges. The problem only gets worse as the front cover is opened and closed, adding more stress to the hinge.
The factory method
The Quad-Creaser wayWhy the OEM way fails
Why the standard factory method falls short
OEM scoring devices compound flaking for two reasons. They are made of steel — a destructive material that breaks cover-stock fibres and any coating on top, rather than gently softening them. And they create small V-shaped indentations that are too weak and too narrow for the spine and hinge to fold cleanly.
How it works
How the Quad-Creaser works
This patented application uses specially formulated rubber and nylon creasing ribs that gently stretch the fibres in the book cover to produce flawless, letterpress-style creases. The three-times-deeper crease forms the shape that fits perfectly around the spine and hinge — and the Quad Creaser can apply two upper (hinge) and two lower (spine) creases that simply won't allow cracking or flaking to occur, regardless of grain direction.

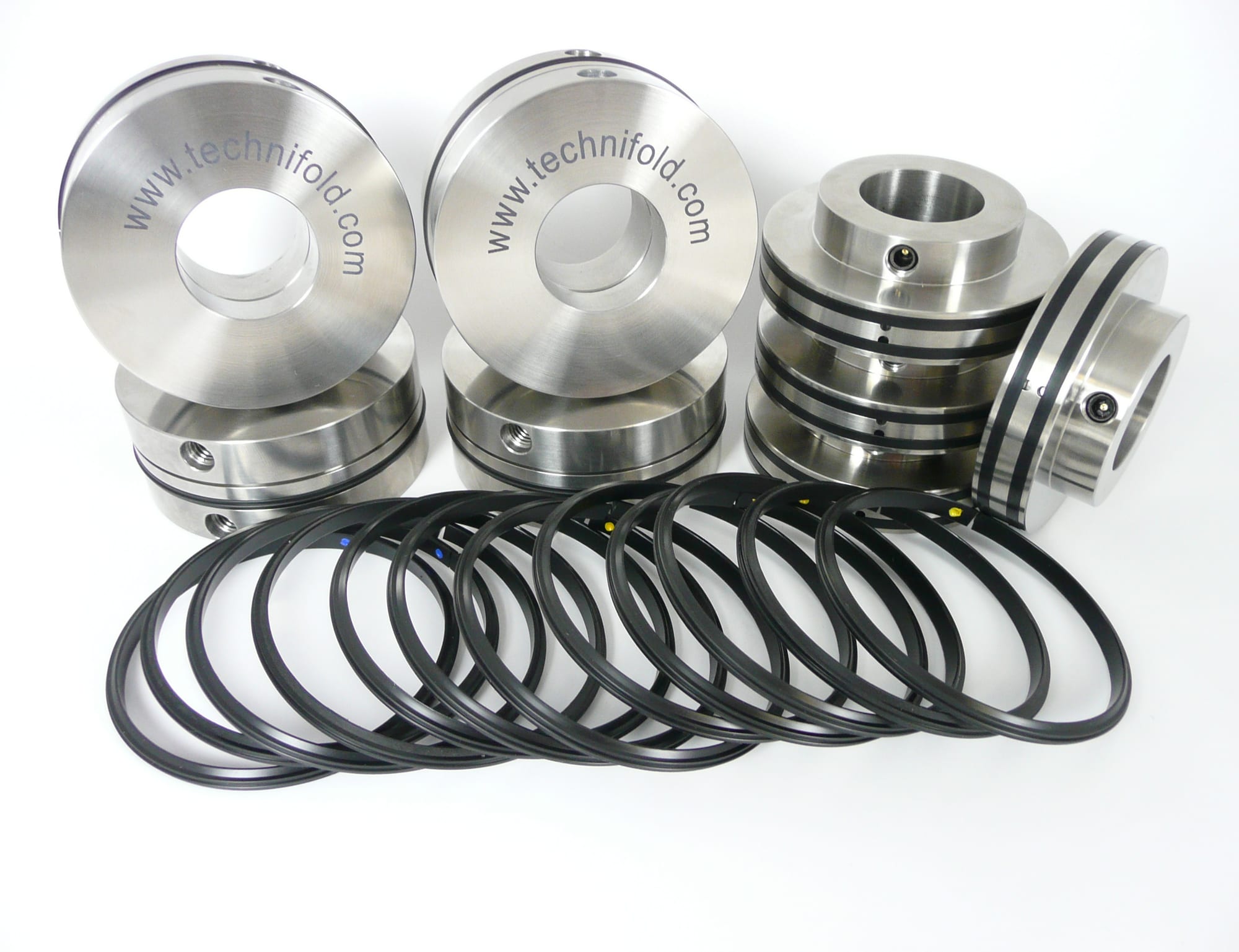

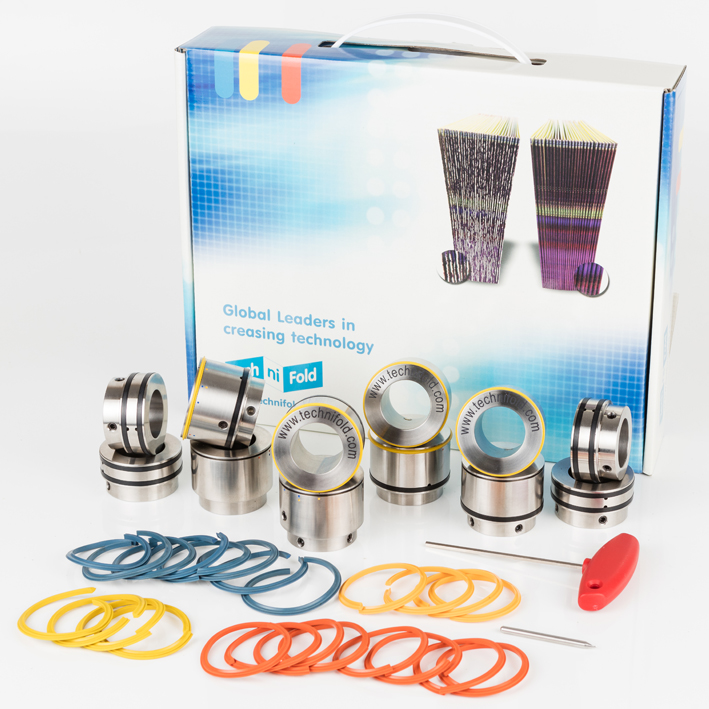

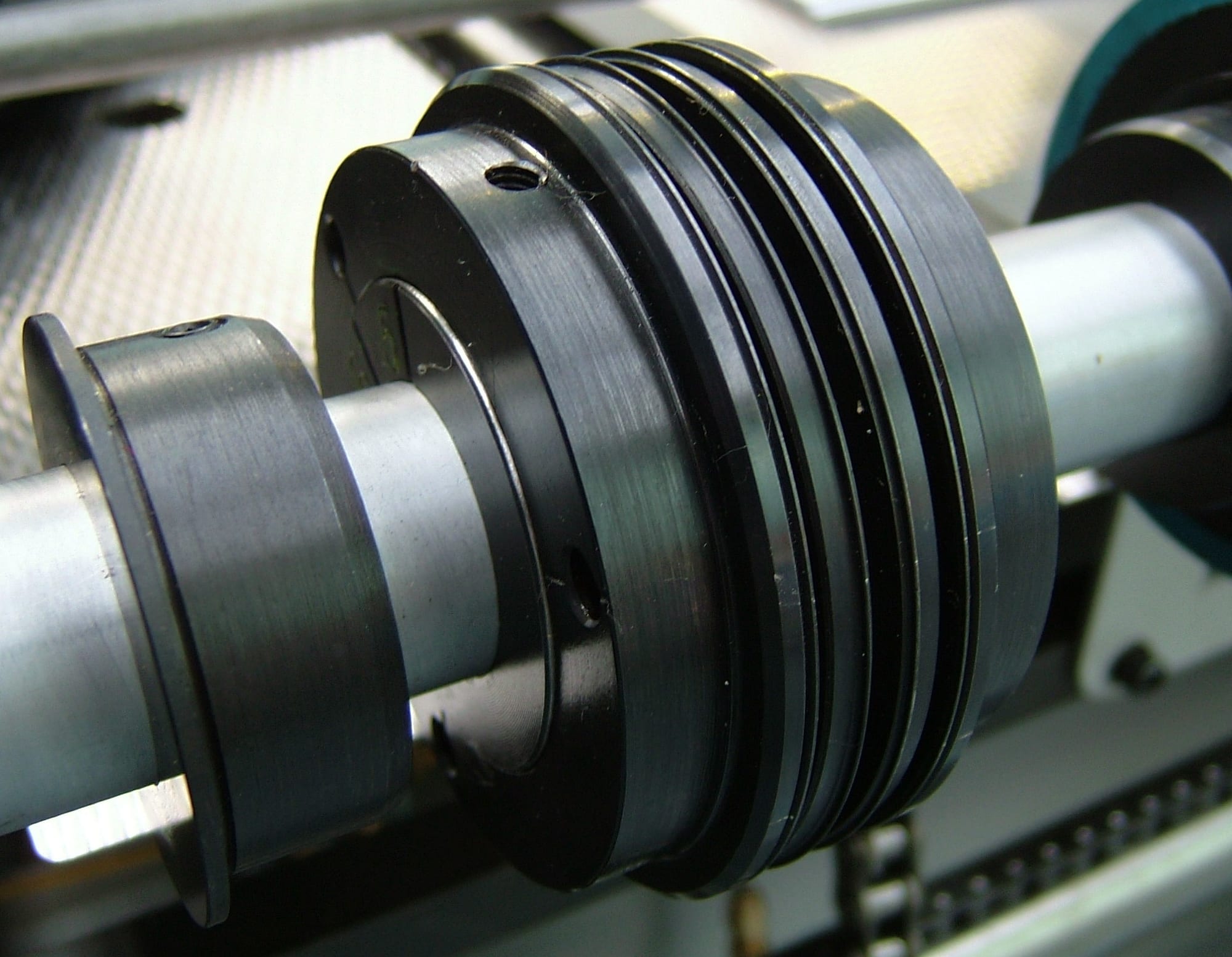

The durable, patented colour-coded rubber creasing ribs are split, so you install them straight into the male and female hubs of your cover creasing unit without taking out the shafts. Installation is simple and needs no machine modifications — you're up and running within minutes.
You can vary the spine and/or hinge widths and depths to work on all cover stocks, and the special male/female colour-coding system makes set-up quick and easy across every cover-stock weight.
The three-times-deeper crease prevents the print, coating and laminate from flaking away, and the stronger creases keep the hinge bonded — so your finished books hold together better, fold effortlessly, and look great across their whole shelf life.

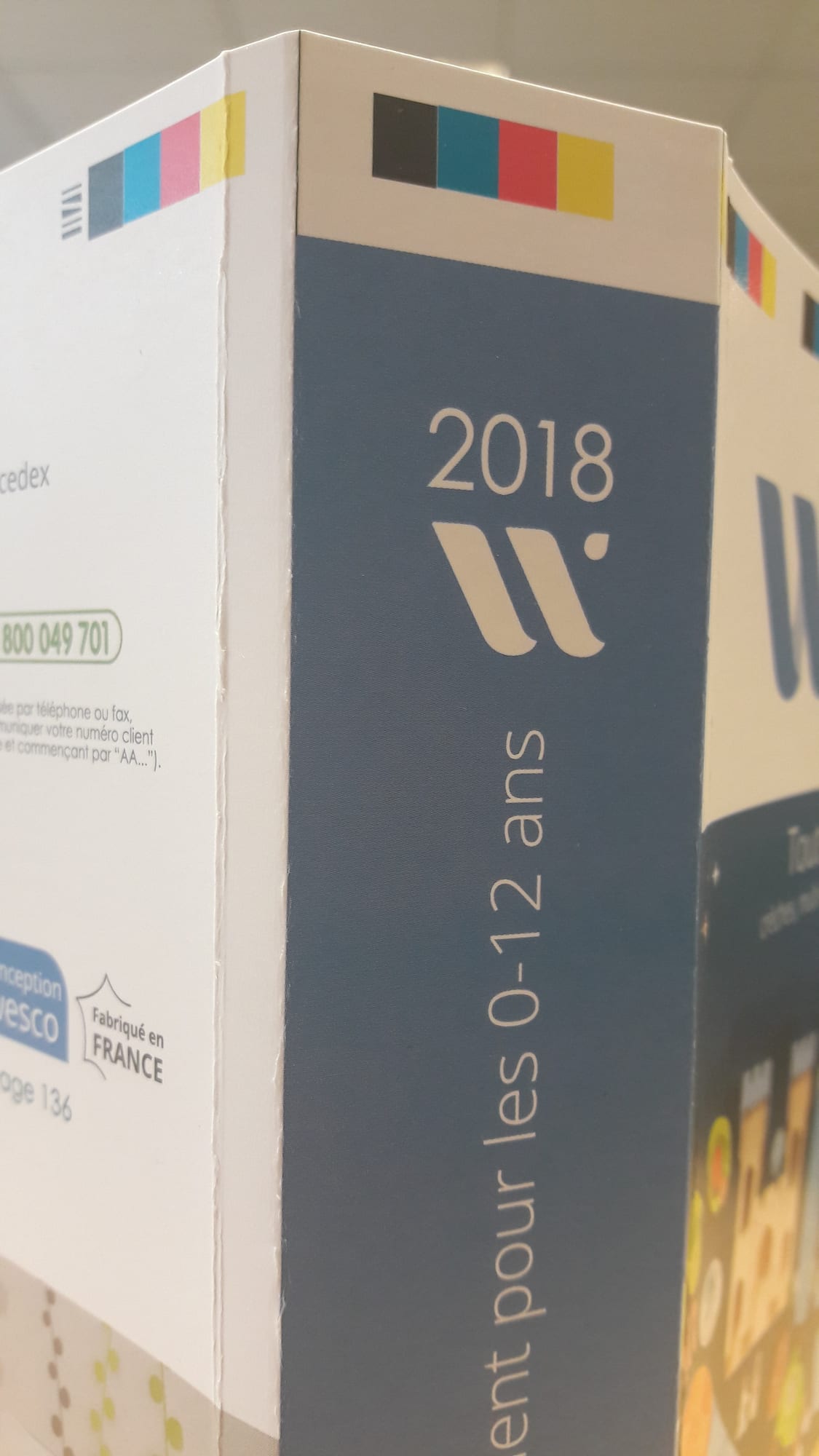

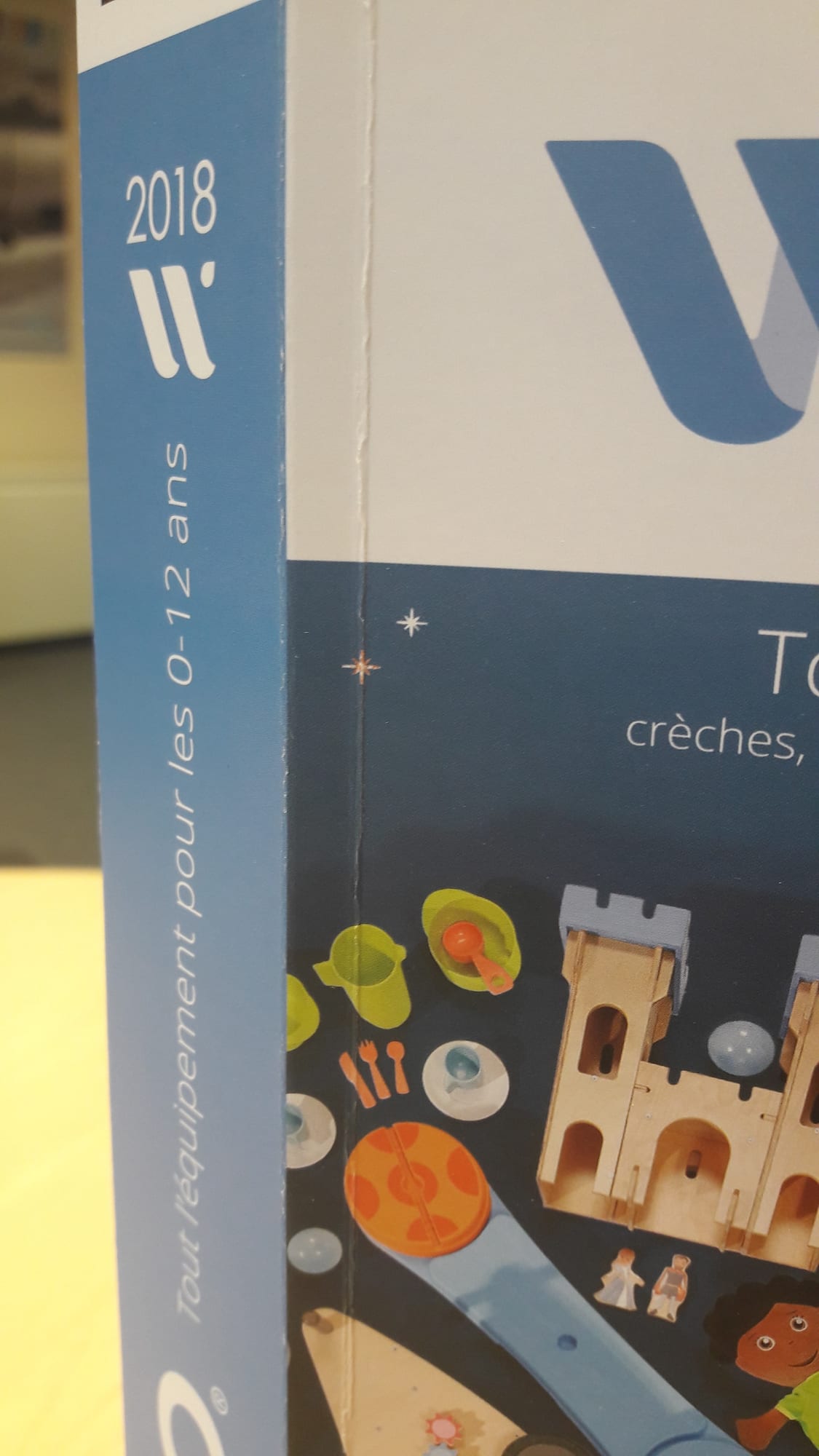

Before
AfterWhat you get
Every Quad-Creaser delivers
- Eliminates spine and hinge fibre cracking and flaking
- Applies a crease three times deeper than OEM scoring tools
- Creases one to four lines at once, on one or both sides of the cover
- Improves glue contact of the hinge area to the text pages
- Vary spine and hinge widths and depths to suit any cover stock
- Fast, simple set-up thanks to split ribs and colour coding
- No more outsourcing covers for offline creasing
- Excellent on UV-coated, laminated and digital stocks
Eliminate spine and hinge fibre cracking and flaking — the defect customers notice first — so high-value covers stay flawless.
A crease three times deeper than OEM scoring tools — deep enough to fold thick, coated covers cleanly without fracturing.
Crease one to four lines simultaneously — on the same side or opposite sides of the cover — to match any fold direction in a single pass.
Improves glue contact of the hinge to the text pages — so covers open with easy flexibility and the book holds together.
No more outsourcing your covers for offline creasing — keep the work, the quality and the margin in house.
Fast and significantly simpler to set than the OEM version — split creasing ribs drop straight into the locking collars, with no ripped sheets or split covers.
The payback
It pays for itself in 1–3 runs
On average the Quad Creaser pays for itself within the first four months of purchase — mostly by avoiding the cost of outsourcing covers — and then keeps the full margin for the many years the device lasts.
Proven worldwide
What printers say
“We had to score thicker covers offline, and now we can do it inline. It has increased productivity, but it is more about the quality of the finished product. I would definitely put your product forward to other print houses.”
“We received the Spine-Creaser attachment this morning and it went right in without any problems. The before and after on the cover spines is so dramatic that everyone from our sales department is floored!”
“Just a line to say we have done two jobs using the CP Applicator. Delighted! Saved 15 hours work on the Heidelberg cylinder between them, and it frees up a man.”
“We have just completed our second job with the Micro-Perforator and have already recovered the cost we paid for it. Now we can complete work quicker, with superior results than previously, and with a lot more control.”
“We had a difficult job and the outside looked great but the inside was flaking. I ordered a new Tri-Creaser Advance, was so impressed, I ordered two more the next day. They really work great. We delivered that job on time and it saved us from getting a letterpress score and missing a deadline.”
“When a new creasing tool was needed for the cover feeder of our Muller Martini binding machine, we turned to Tech-ni-Fold. We were utterly amazed when we tried the adjustable version of the Quad Creaser — it had colour-coded ribs that corresponded to different crease styles, and it further improved the quality of covers using our own special side-gluing "spineless" method. Not only does the system eliminate fibre-cracking, it also minimises the reset force of the cover. The Quad Creaser has allowed Kosel to raise its own quality standards for bound products.”
For digital printers
Built for digital print finishing
Performs excellently on UV-coated, laminated and digitally-printed stocks — the very finishes most likely to flake under a steel score — so digital bound covers come off the line clean.
Fits your machine
Engineered for the world's machines
We make a Quad-Creaser to fit machines from 8 manufacturers, including:
Risk-free
Covered by our unique 3-month 100% money-back guarantee. If for any reason you are not satisfied with how your Quad Creaser performs within the first three months, simply return it for a full refund.
