Bacciottini Butterfly Folding Unit

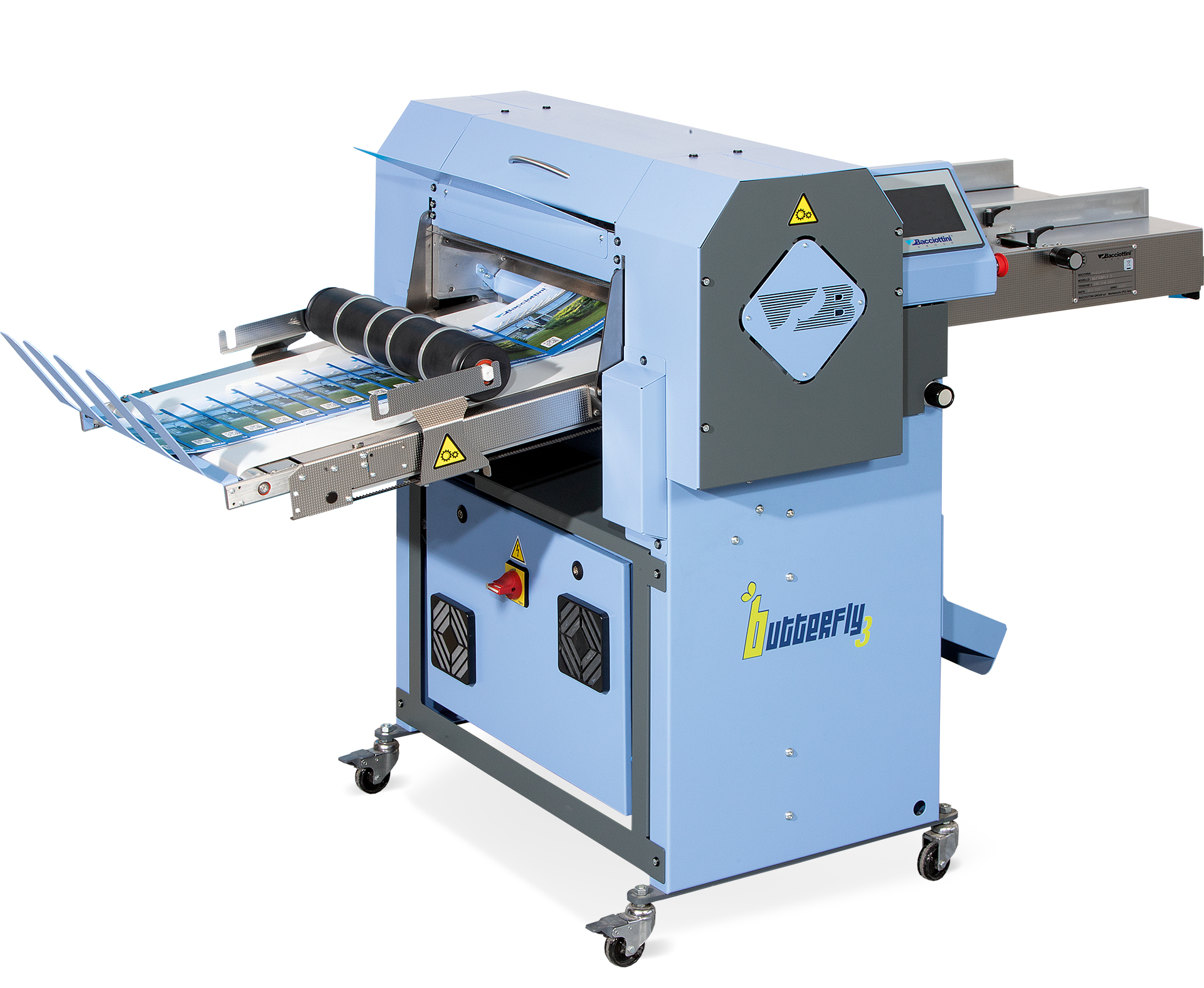

Butterfly Folding Unit inline knife folder, full machine on white

The Bacciottini Butterfly Folding Unit is an inline knife-folding add-on behind any Pit Stop creaser. It runs sheets from 80 × 150 mm up to 500 × 850 mm. It handles stock from 80 to 450 gsm, at up to 14,500 cycles/h.

Each job you run comes with its own specific problems, and more often than not the culprit is found on the tooling shafts. The standard finishing tools supplied with your machine aren’t accurate, versatile or delicate enough for the results you and your customers expect. At Technifold we design and build bespoke, retro-fit premium finishing tools to solve both common and complex finishing problems.

Your Butterfly Folding Unit, finished properly.

What fits the Butterfly Folding Unit? Get the answer →

What we solve

Problems we eliminate on the Butterfly Folding Unit

Eliminate fibre crackingCracked colour on the fold, on digital, coated or cross-grain stock. The steel score that causes it, and what replaces it in minutes.See how we eliminate it →

True micro-perforationRagged bursts, paper dust, stacks that will not lie flat. The coarse perf wheel that causes it, and the blade that replaces it in minutes.See how we eliminate it →

Guillotine-quality cuttingFuzzy, dusty edges and a second pass at the guillotine. The crush-cut slitters that cause it, and the scissor-action tool that replaces them in minutes.See how we eliminate it →

Section scores that holdSections that spring open, gusset at the head and fight the stitcher. The barely-there steel score that causes it, and the deep, defined score that replaces it.See how we eliminate it →

Pharma leaflet scoringTorn scores and wrinkled folds on thin, highly-folded leaflet work. The abrasive steel score that causes it, and the six-setting pharma score that replaces it.See how we eliminate it →

Book cover creasingSpine and hinge creases in one pass, in register, without cracking. The cover work you send out, done on the folder you already run.See how we eliminate it →

Close-proximity finishingCrease beside cut, crease beside perf, cut beside perf, or doubles of any of them. One housing, six set-ups, no letterpress bill.See how we eliminate it →

Crease with perfs both sidesThe perf-crease-perf pattern for stubs and tear-offs, packed into millimetres, in one pass. The specialist tool for work that otherwise goes to letterpress.See how we eliminate it →

Custom & OEM toolingA part that is obsolete, impossible to source, or never existed. If it is a wheel, a blade, a rib or a holder that touches paper or board, we can probably make it.See how we eliminate it →

The next step

Tell us the jobs you run on your Bacciottini Butterfly Folding Unit

We’ll email you exactly what fits your machine and what it costs, specified by the engineers who make the tools, not picked from a catalogue.

No payment details, no commitment. If it looks right, your first 30 days on the machine are free. A money-back promise has backed this tooling since 1999.

25 years · 45,000+ tools running worldwide
